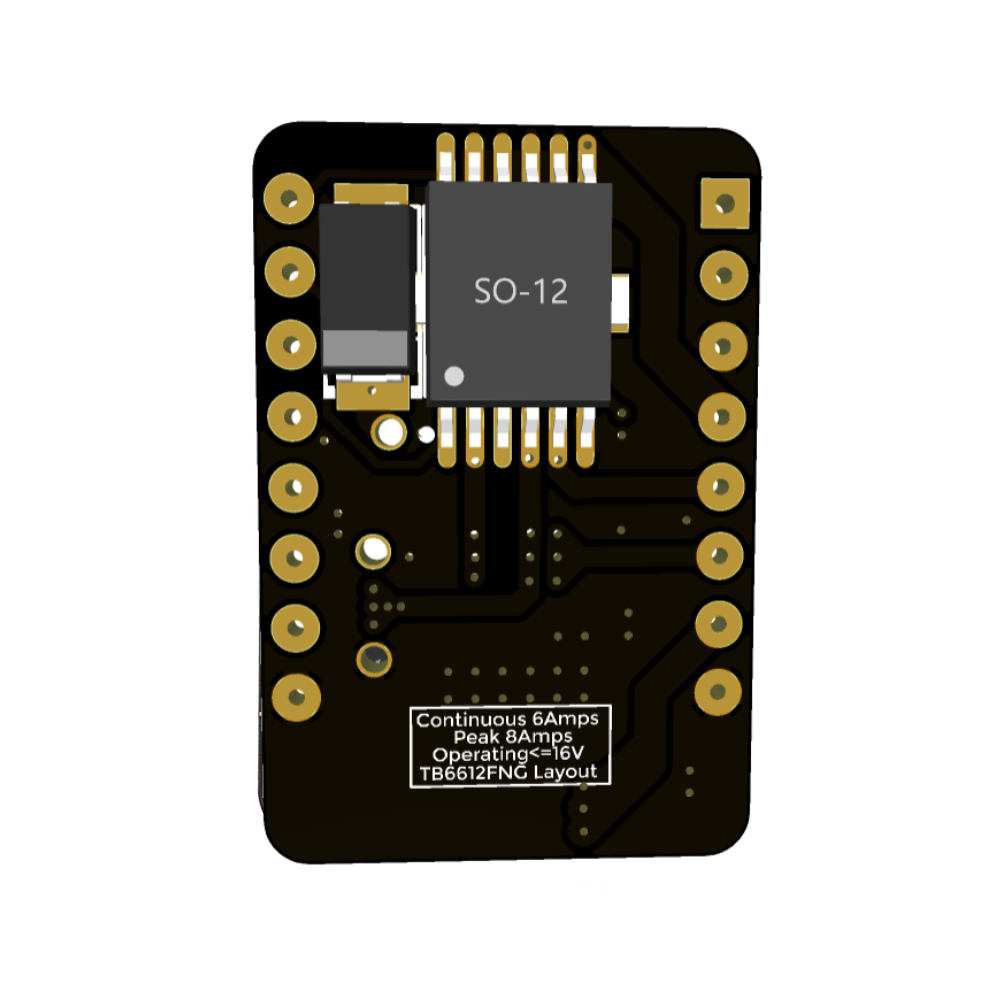

Dual IFX9201SGAUMA1 Motor Driver Board (Continuous 6AMPS | Peak 8AMPS)
Quality & Support
Logistics & Delivery
Upgrade your robotics drive system with the Dual IFX9201SGAUMA1 Motor Driver Board, engineered for high-power, high-reliability motor control. Built around two automotive-grade Infineon IFX9201SGAUMA1 H-Bridge driver ICs, this board delivers up to 6A continuous and 8A peak current capacity. Designed specifically with a standard TB6612FNG pinout layout, it serves as a seamless, drop-in replacement for low-power TB6612FNG modules. You can immediately boost your robot's torque and power output without re-wiring, re-designing custom PCBs, or modifying existing chassis setups. Ideal for competitive robotics, high-speed line followers, sumo bots, and heavy-duty DC motor control, this driver features integrated protection mechanisms—including overcurrent, thermal shutdown, and undervoltage lockout—to safeguard your system under demanding operating conditions.
- Dual IFX9201SGAUMA1 Driver ICs
- Continuous Current: 6A
- Peak Current: 8A
- Form Factor: TB6612FNG Pin-Compatible
- Operating Voltage: 4.5V – 36V
- Logic Voltage: 3.3V / 5V Compatible
- PWM Frequency: Up to 20 kHz
- Integrated Protection: Thermal Shutdown
- Overcurrent Protection
- Undervoltage Lockout
- Dimensions: Standard TB6612FNG Module Footprint.
- Can Run Dual Motor Setup
